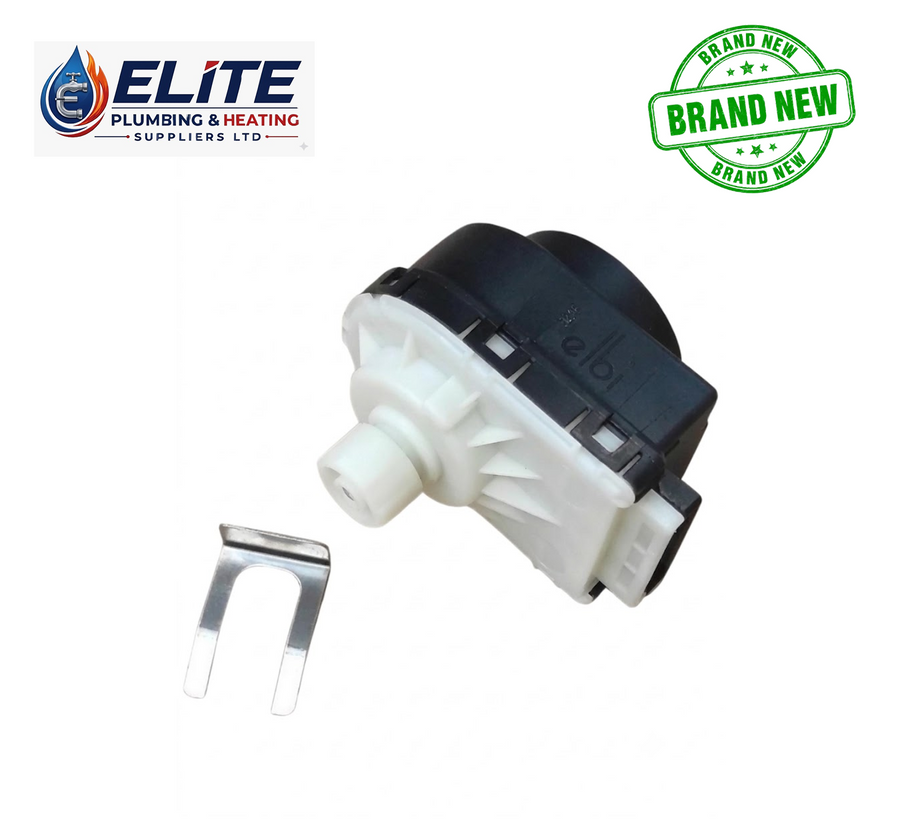

Baxi 7216534 Diverter Motor with Black and White Clip – Replaces 5132452, 710188301 & 248733
SKU: ACT-1939-A-N
The Baxi 7216534 Diverter Motor Black/White with Clip is a replacement component designed to support reliable switching between central heating and domestic hot water within the boiler system.
It directly replaces obsolete part numbers 5132452, 710188301 and 248733.
This diverter motor is widely used across selected Baxi, Main and Potterton combi boilers, making it a commonly required spare part for boiler servicing and repairs.
Compatible Boilers & GC Numbers
Baxi Boilers
Baxi 600 / 800 Combi Series
| Title | GC Number |
|---|---|
| 624 Combi | 47-077-28 |
| 630 Combi | 47-077-29 |
| 636 Combi | 47-077-30 |
| 825 Combi | 47-077-38 |
| 830 Combi | 47-077-39 |
| 836 Combi | 47-077-40 |
Baxi Duo Tec Series
| Title | GC Number |
| Duo Tec 24 HE | 47-075-23 |
| Duo Tec 28 HE | 47-075-25 |
| Duo Tec 33 HE | 47-075-24 |
| Duo Tec 40 HE | 47-075-26 |
| Duo Tec 24/28/33/40 HE A | 47-075-35, 47-075-36, 47-075-37, 47-075-38 |
| Duo Tec 2 Combi GA | 47-075-54, 47-075-55, 47-075-56, 47-075-57 |
| Duo Tec ErP Combi 24/28/33/40 | 47-075-96, 47-075-97, 47-075-99, 47-077-03 |
Baxi Ecoblue & Advance Combi Series
| Title | GC Number |
| Ecoblue Advance Combi 24/28/33/40 | 47-075-87, 47-075-88, 47-075-89, 47-075-90 |
| Advance Combi ErP 24/28/33/40 | 47-077-14, 47-077-15, 47-077-16, 47-077-17 |
Baxi Platinum Series
| Title | GC Number |
| Platinum Combi 24/28/33/40 HE | 47-075-27, 47-075-28, 47-075-29, 47-075-30 |
| Platinum Combi 24/28/33/40 HE A | 47-075-31, 47-075-32, 47-075-33, 47-075-34 |
| Platinum 2 Combi GA | 47-075-61, 47-075-62, 47-075-63 |
Older Baxi Models
| Title | GC Number |
| Combi Instant 80E / 105E / HE | 47-075-09, 47-075-13, 47-075-17, 47-075-19, 47-075-50 |
| Combi HE 24/28/33 | 47-075-20, 47-075-21, 47-075-22 |
| Combi ErP 24/28/33/40 | 47-077-04, 47-077-05, 47-077-06, 47-077-07 |
Main Boilers
| Title | GC Number |
| Eco Compact 25/30 Combi | 47-467-14, 47-467-15 |
| Eco Elite 25/30 Combi, Pre & Post MMH1512 | 47-467-08, 47-467-09 |
| Main Combi ErP 25/30 | 47-467-12, 47-467-13 |
| Main Combi 25/30 Eco | 47-467-01, 47-467-03 |
Potterton Boilers
Potterton Combi
| Title | GC Number |
| Combi 25/30/36 & LPG | 47-393-58, 47-393-59, 47-393-67, 47-393-69, 47-393-70 |
Potterton Gold Series
| Title | GC Number |
| Gold 24 HE A Combi | 47-393-18 |
| Gold 28 HE A Combi | 47-393-19 |
| Gold 33 HE A Combi | 47-393-20 |
| Gold 24/28/33 HE Combi | 47-590-05, 47-590-06, 47-590-19 |
| Gold Combi ErP 24/28/33 & LPG | 47-393-43, 47-393-44, 47-393-45, 47-393-46 |
Potterton Heatmax
| Title | GC Number |
| Heatmax Combi 24/28/33 HE | 47-393-27, 47-393-28, 47-393-29 |
Potterton Performa
| Title | GC Number |
| Performa 24i HE | 47-393-12 |
| Performa 28i | 47-393-08 |
Potterton Promax Series
| Title | GC Number |
| Promax Combi 24/28/33 HE Plus & Plus A | 47-393-17, 47-393-21, 47-393-22, 47-393-23 |
| Promax Combi 24 HE Plus LPG | 47-393-24 |
| Promax Ultra 24/28/33/40 Combi ErP | 47-393-54, 47-393-55, 47-393-56, 47-393-57 |
| Promax Combi ErP 24/28/33 | 47-393-47, 47-393-48, 47-393-49 |
Potterton Titanium Series
| Title | GC Number |
| Titanium Combi 24/28/33/40 | 47-393-39, 47-393-40, 47-393-41, 47-393-42 |
| Titanium Combi ErP 24/28/33/40 | 47-393-50, 47-393-51, 47-393-52, 47-393-53 |
Please note: Before placing your order, check that your existing part matches the manufacturer part number stated above.
