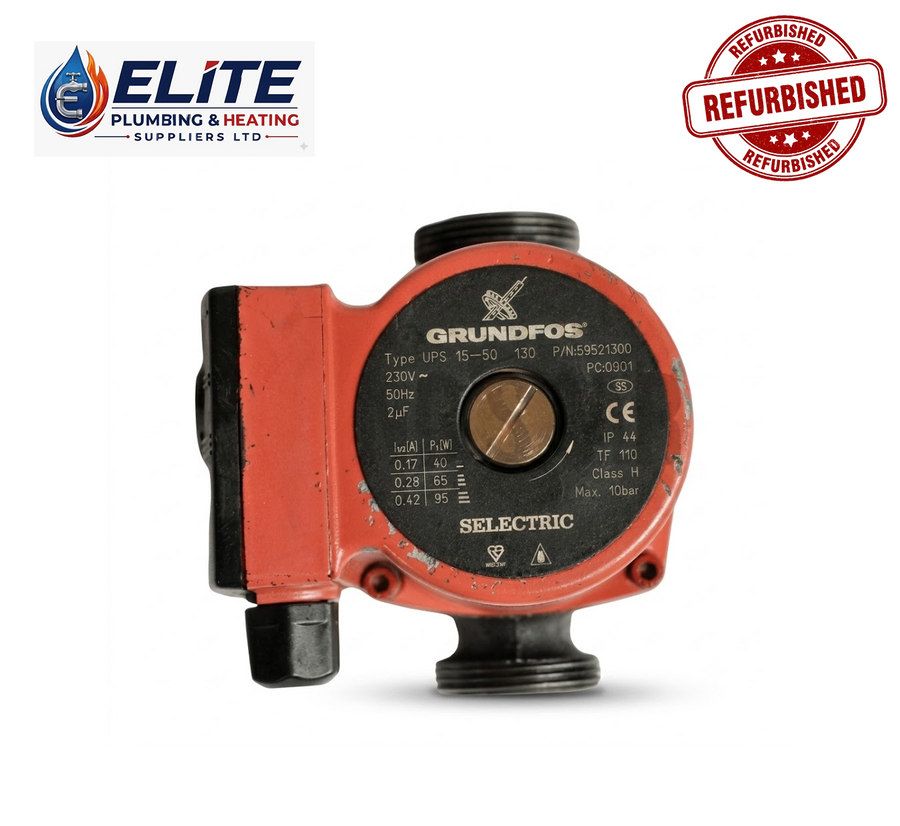

Grundfos UPS 15-50 130mm Water Circulation Pump 240V 59525469

The Grundfos UPS 15-50 130 Water Circulating Pump 59525469 is a dependable and efficient circulation pump designed for domestic and commercial heating systems. It provides smooth water circulation for central heating and hot water applications while delivering quiet operation and reliable performance.

With its compact design and proven Grundfos technology, this pump is suitable for a wide range of heating installations. Each unit is professionally checked and supplied with a 12-month warranty for peace of mind.

🔍 Key Features:

✅ Suitable for central heating and hot water circulation systems
✅ Compact 130mm port-to-port design for easy replacement
✅ 3-speed selector for adjustable pump performance
✅ Canned rotor construction with no shaft seal
✅ Bearings lubricated by the circulating system fluid
✅ Ceramic shaft and radial bearings for durability
✅ Carbon axial bearing for smooth operation
✅ Stainless steel rotor can and bearing plate
✅ Corrosion-resistant composite impeller (PES/PP)
✅ Strong cast iron pump housing
✅ Single-phase motor design for domestic applications

📐 Technical Specifications:

Manufacturer: Grundfos
Model: UPS 15-50 130
Part Number: 59525469
Warranty: 12 Months
Voltage: 240V, 1 Phase, 50Hz
Maximum Flow Rate: 3.4 m³/h
Maximum Head: 6 metres
Full Load Current: 0.23A
Maximum Working Pressure: 10 bar
Port-to-Port Length: 130mm
Dimensions: 130mm (H) x 126mm (W) x 131mm (D)
Weight: 4.0 kg
Pump Housing Material: Cast Iron

The Grundfos UPS 15-50 130 circulator pump is designed for efficient heating performance and long-term reliability. All units are inspected and tested before dispatch to ensure quality operation.

⚠️ Please confirm your existing pump model and manufacturer part number before placing your order.

We provide genuine heating components, with every refurbished part professionally tested by experienced engineers.
